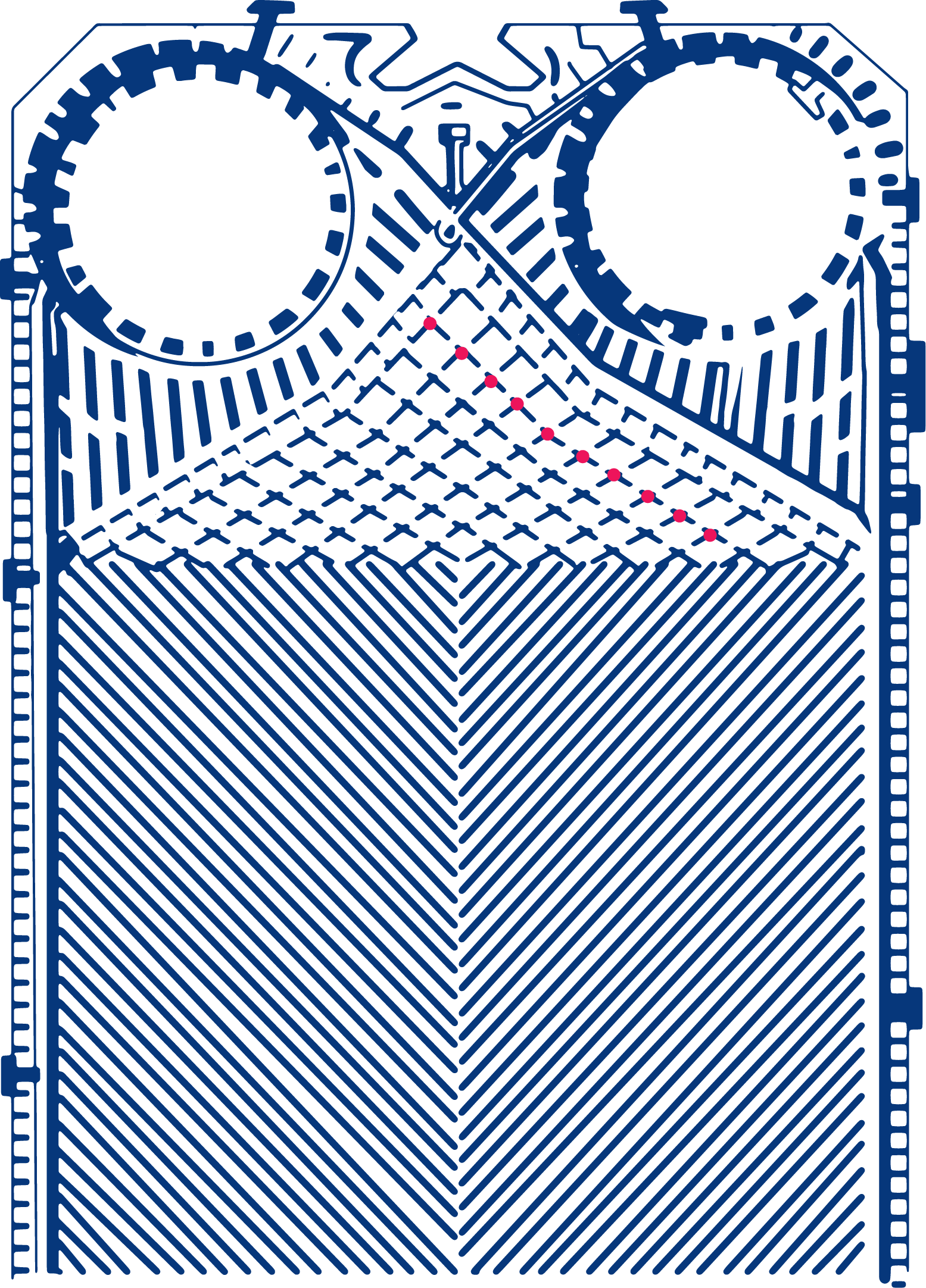

Gasketed Plate Heat Exchangers

Gasketed plate heat exchangers are an efficient, easily serviceable, and flexible solution with low operating costs.

Gasketed Plate Heat Exchangers

C+C servis, s.r.o. has access to selection software from renowned international manufacturers of plate heat exchangers, such as the German company FUNKE®, Danish Danfoss Sondex®, and Swedish Alfa Laval.

If required, we can provide an all-stainless-steel plate heat exchanger, including all necessary certifications for food contact – the U.S. FDA standard or, upon request, the European certificate according to CE Regulation 1935/2004 (on materials and articles intended to come into contact with food). Certifications on request must be arranged prior to production due to specific procedures.

We are also happy to provide both warranty and post-warranty service, including pressure or hydrogen leak tests carried out by our professionally trained staff.

Why choose gasketed plate heat exchangers?

  1. Easy maintenance and cleaning – The exchangers can be easily opened, allowing individual plates to be cleaned, inspected, or replaced without complex procedures.
  2. Flexibility and adaptability – The number of plates can be adjusted based on current operational requirements (e.g. capacity changes).
  3. Low operating costs – Simpler servicing results in lower maintenance costs compared to brazed or welded exchangers.
  4. High thermal efficiency – Thin plates with optimized corrugation enable very efficient heat transfer even at small temperature differences.
  5. Repairability – Damaged plates or gaskets can be replaced individually without the need to replace the entire unit.
  6. Broad range of applications – Ideal for processes with varying media, temperatures, or operating modes – from food industry to energy and chemical sectors.
  7. Material versatility – Plate and gasket materials can be selected to suit specific media, including aggressive chemicals, food-grade fluids, water, or oils.

What information do we need from you?

To accurately design and calculate your heat exchanger, we need the following details:

From the 7 marked parameters (*), at least 5 are required for an accurate calculation; the remaining can be derived.

If you do not have all the above information, we can offer an approximate proposal based on your current unit. In that case, please provide:
